20" 30" 40" Length String Wound Filter Cartridge Production Line

Name: 20quot 30quot 40quot Length String Wound Filter Cartridge Production Line
Brand: AJMS
Price: 4000 USD

Wholesale 20" 30" 40" Length String Wound Filter Cartridge Production Line from china suppliers

Brand Name : AJMS

Model Number : AJMS010

Certification : CE, ISO

Place of Origin : Jiangsu

MOQ : 1 set

Price : USD4000 - USD7000 per set

Payment Terms : L/C, T/T

Supply Ability : 100 sets per month

Delivery Time : 7-10 days after receiving your deposit

Packaging Details : packed by wooden case or as your request.

Product name : String Wound Filter Cartridges Production Line

Winding line speed : 40-280m/min

Max winding dia : 200mm

Connecting cable : 4X1.5mm R,S J.MP

Power supply : three-phase 380V/50HZ, one-phase 220V/50HZ

Motor power : 180W/spindle, 250W/spindle

Motor speed : 2800r/min

Winding frame material : polypropylene, stainless steel etc.

Winding frame inside dia : 10, 12, 14, 16, 18, 20, 26, 28, 30, 32, 40, 65mm etc.

Single spindle panel size : (W*H)390x308mm

Contact Now

20" 30" 40" Length String Wound Filter Cartridge Production Line

Quick details

Place of Origin:	Jiangsu, China (Mainland)	Brand Name:	HT, HT	After-sales Service Provided:	Engineers available to service machinery overseas
Product name:	string wound filter cartridges production line	Voltage:	380/220v	Weight:	110KG
Fliter precision:	1-100micron	Filter ID:	28-30mm	Filter OD:	29-200mm
Certificate:	ISO9001:2008 & CE

Winding speed	60-320m/nin
Power	0.18kw/spindle(10"),0.25kw/spindle(20"),0.37kw/spindle(30")
Voltage	AC380V,50hz other voltage can be customized
Motor	Three-phase asynchronousnotor motor.Speed:2800r/min.(filter length<30") Three-phase torque motor.Speed:1400r/min.(filter length ≥30:)
Core"s matrrial	PP,Stainless steel or customized
Cam's material	polyformaldehyde
Production capacity	60pcs/hour(10")
Single spindle tablet size	(wh)390308mm
Reciprocapting stroke	generally divided into 5",10",20",30",40".Others can be customized

Filter Cartridge

Inner diameter	28mm or 30mm. others can be customized
Outer diameter	29mm-200mm
precision	1um-100um
Length	10"-100" or customized

Accessories for free

Small spring	20pcs
Guide grooves	10pcs
Guide block	3pcs
Large spring	10pcs
Button	2pcs
Belt	2pcs
Micro gears	2pcs

Our Services
OEM and ODM are available
oversea engineers can help you.
We have well-trained and expericed staffs to cooperate with you.
Strict test before packing
Protection of your ideas of design and all your private informations.
Your any inquiry abouts our products and company can be replied in 24 hrs.
Warranty Terms:
2 years warranty, life-long maintenance.
We provide the screw rod inside extruder, extruder's barrel, and extrder's gear box for 3 years free
Inverter and extruder's electric motor 2 years free if yours is broken without human factor.
Technical Support:
Mr. Yu- with 20 years' experience in machine design and especially good in plastic extruding industry
Mr. Hao- with 15 years' experience in filter making factory and can make all the filters you want
Mr. Ni- with 30 year's experience in designing PP string wound filter cartridge making machines
Warranty
2 years warranty,
We provide the new main parts (inverter , screw rod ,extruder barrel , extruders' motor ,gear box) for free if yours is broken without human factor during 2 years. After warranty, We will supply spare parts by cost price.

20" 30" 40" Length String Wound Filter Cartridge Production Line

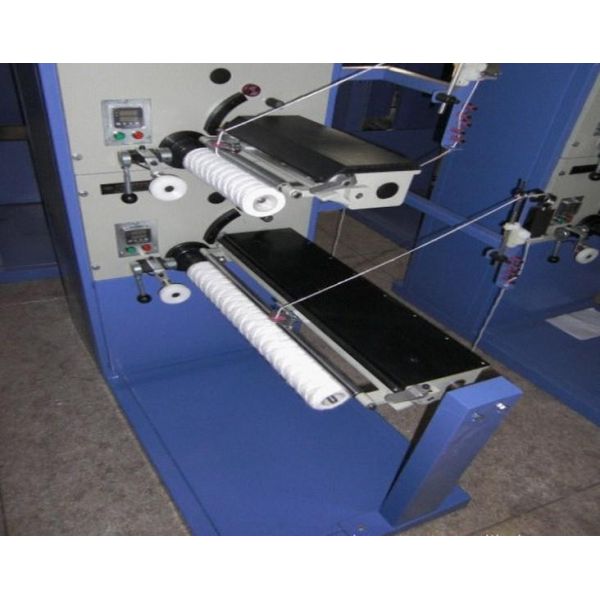

20" 30" 40" Length String Wound Filter Cartridge Production Line Images
